Project Description

110V AC DISTRIBUTION SWITCHBOARDS

3 Offshore Construction Vessels, Davie Shipyard, Levis, Quebec

Systems:

GALEX SYSTEMS inc. supplied the 110V AC Distribution Switchboards integrated with IAS and 450/240/110V AC distribution system in respect to IEC and DNV register requirements (DP3).

Equipment supplied/manufactured:

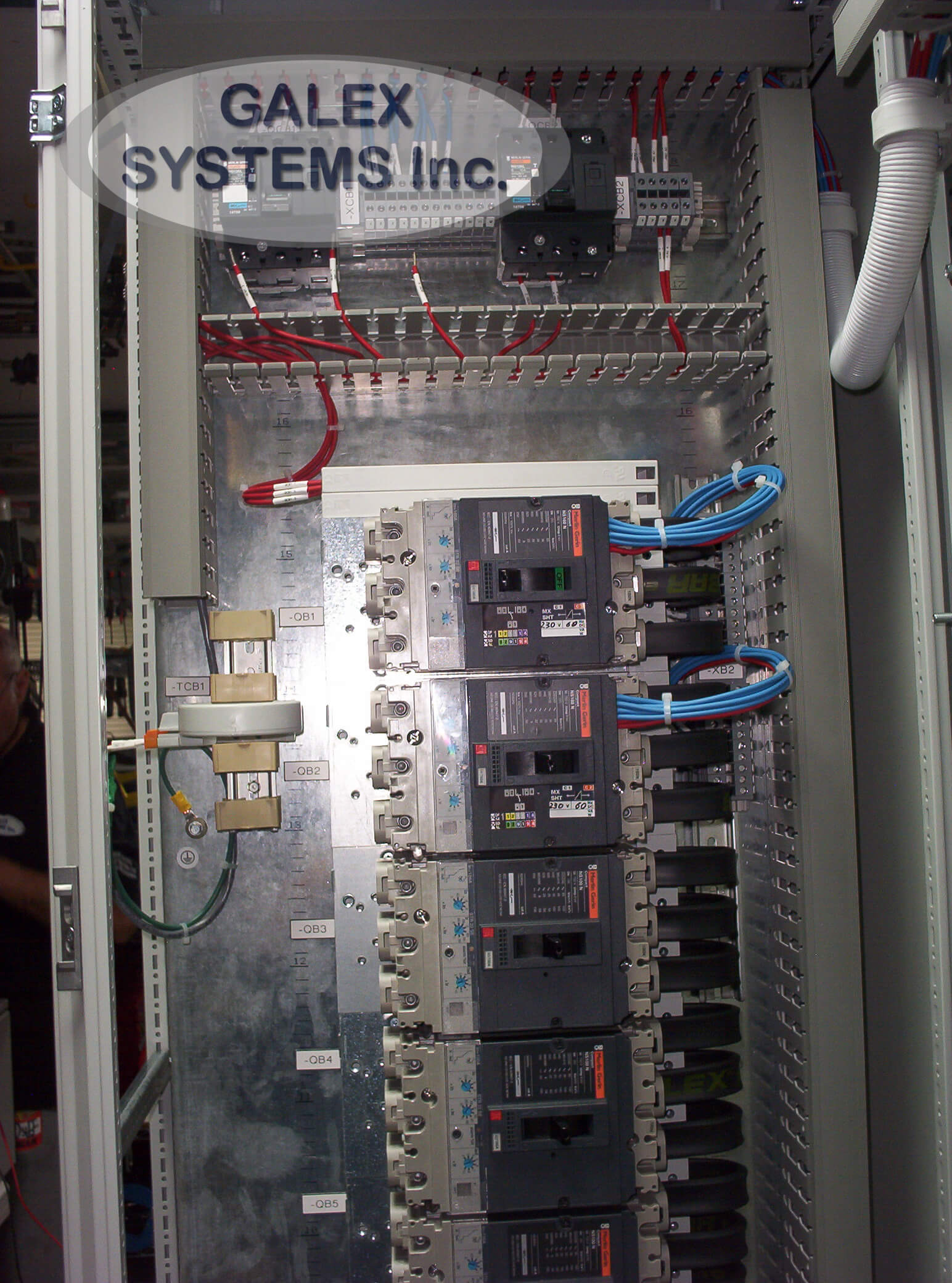

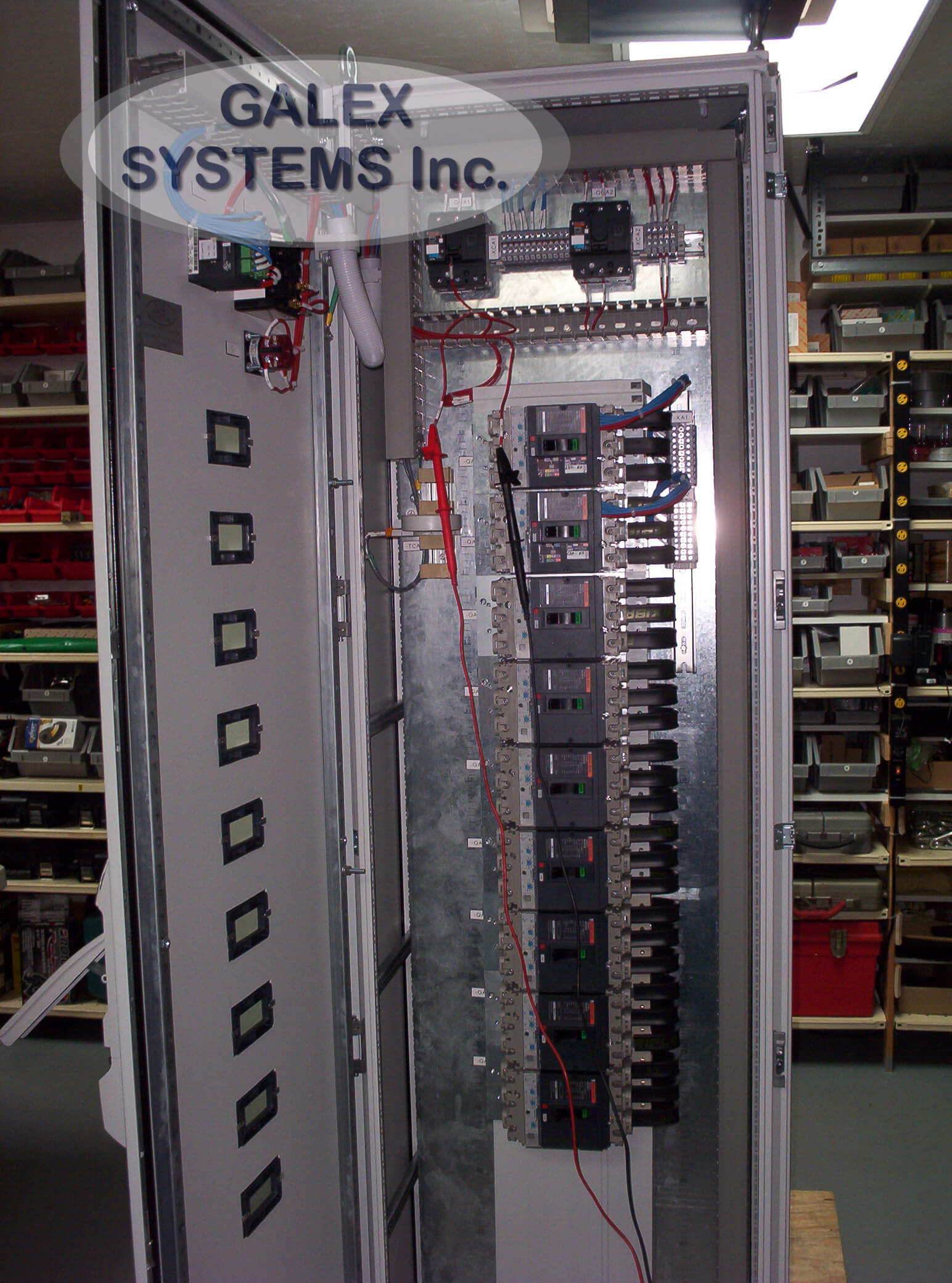

Each vessel is equipped with 2(two) 110V AC Switchboards.

Engineering services provided:

Mechanical & Electrical Engineering, design & drafting for 110V AC Switchboards.

Installation, Manufacturing and commissioning:

According the detailed IEC and DNV specifications; Fully functional test;

Technical documentation:

Electrical & mechanical drawings and schematics – Complete documentation package.

2008-2009 Montréal, Qc.
